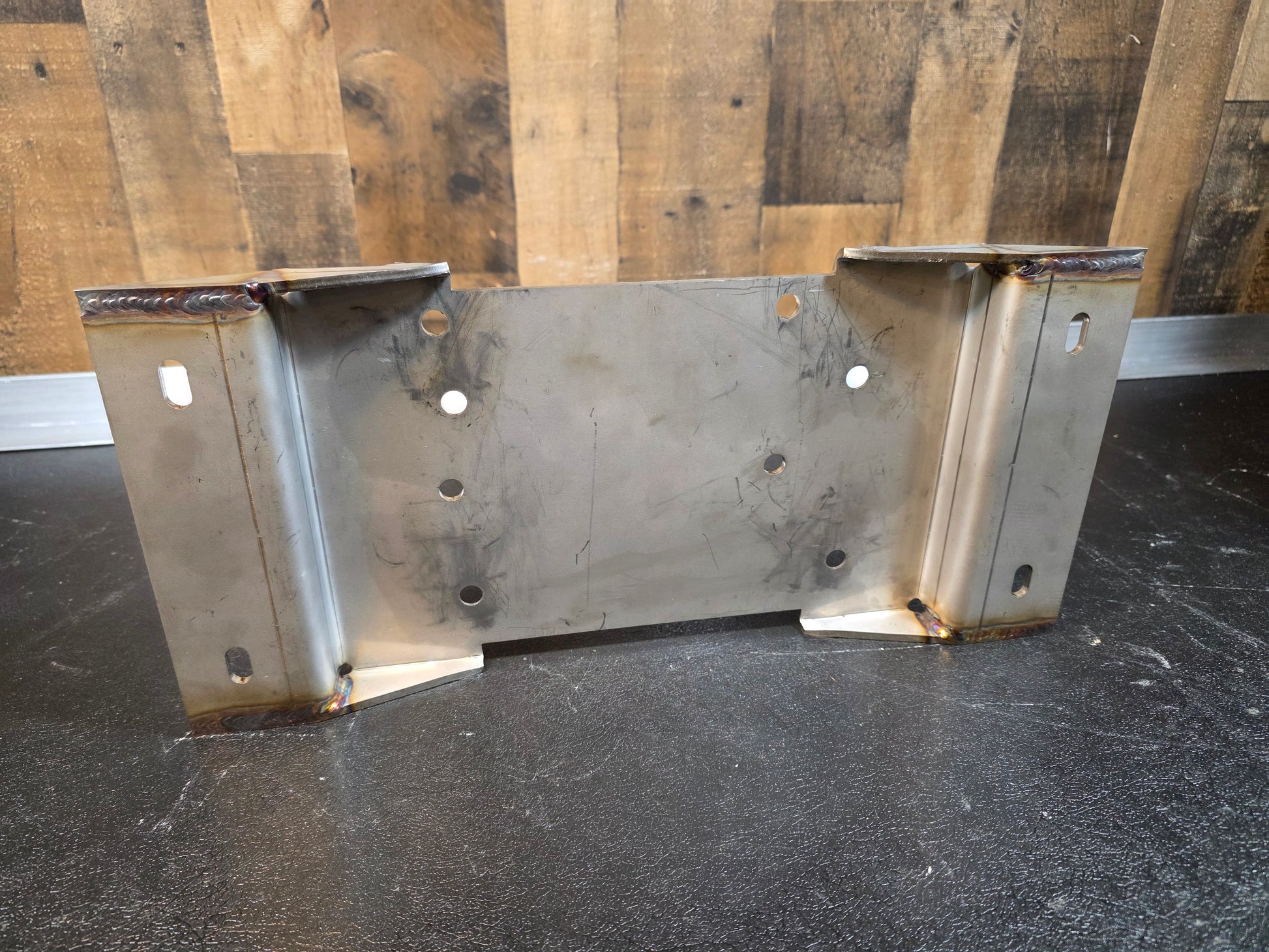

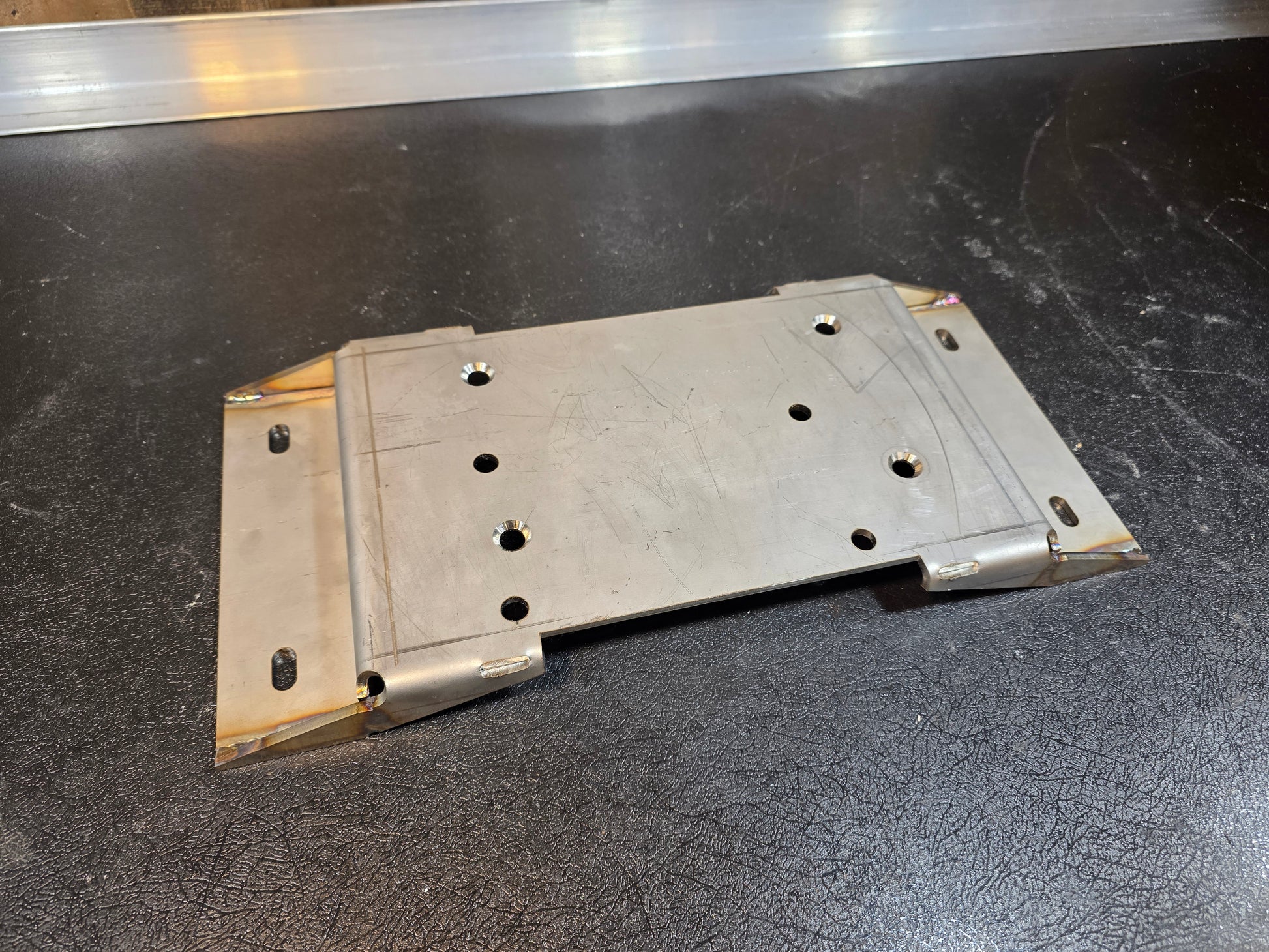

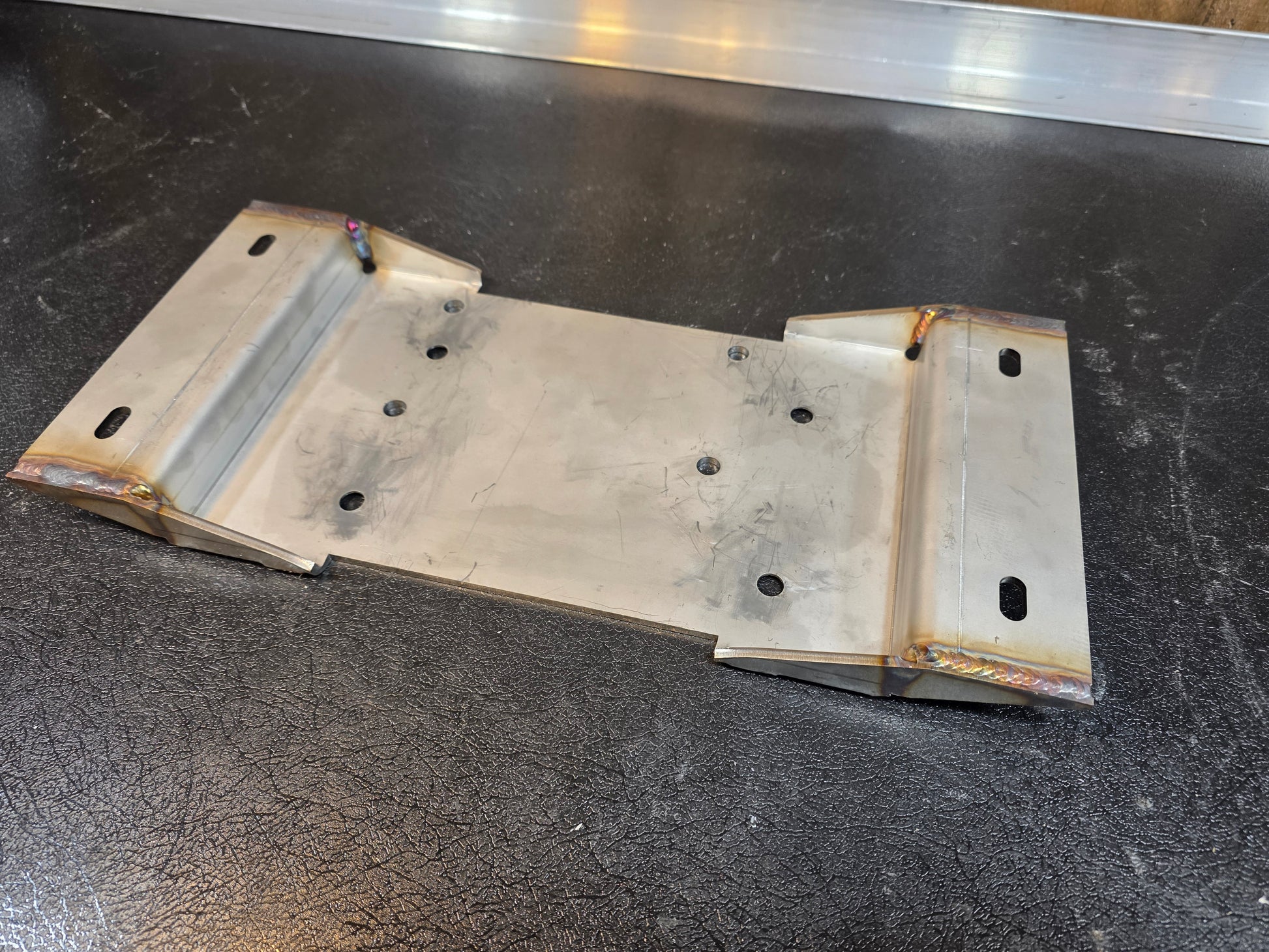

Introducing our new Predator 212cc / 301cc / 420cc / 670cc Engine Mount Plate. This is made from laser cut, bent, and welded 3/16" , 304 stainless steel. Hole patterns include all arrangements for 212cc - 670cc.

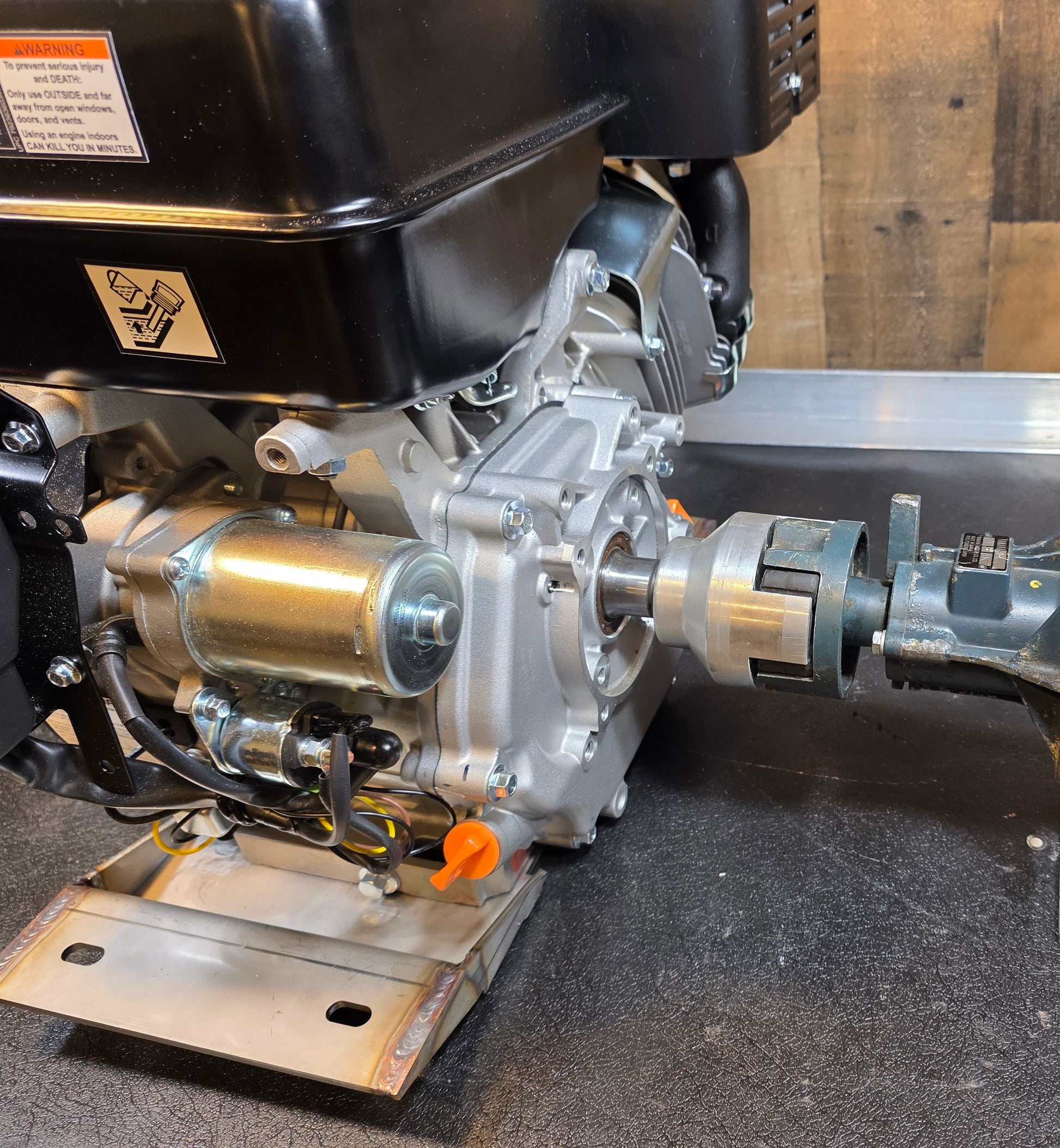

Matching engine shaft height to pump shaft height can be a challenge with these projects. This motor mount plate provides enough clearance to direct drive to the Waverunner 500 / LX650 pumps, and can be setup as direct drive to a Yamaha 144mm pump with a 1/2" riser. Please double check your dimensions between the engine shaft height, the 3/16" plate, and your pump height. Typical 420cc engines run a 133.5mm shaft height, plus approximately 5mm for the engine mount plate for 138.5mm pump shaft height.
This can either be configured with 4 rubber mounted feet, or a solid mount to the boat/pump frame. The 212cc engine would require a 2" riser block for mounting due to the lower shaft height.
This will come with x4 3/8" stainless, tapered head bolts, washers, and lock nuts for engine mounting.
This is being setup as a pre-order, please shoot us an email if you're interested in the first batch.
This does not come with an engine or coupler.
Product features
Billet aluminum designed to last a lifetime, machined in USA by local small business.
